Welding manipulator

2019-03-18 20:26

Detailed description

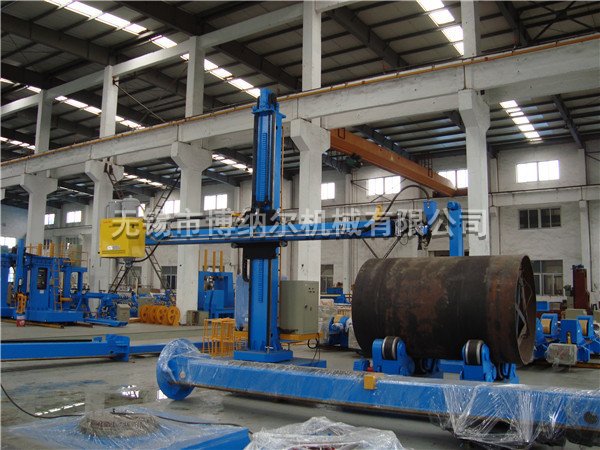

The automatic welding center consists of welding manipulator, welding power source (including MIG/MAG, TIG, PLASMA WELDING, SAW), welding roller frame (or welding positioner) to weld metal containers and structural parts. The equipment can be controlled separately and jointly. According to customer's needs, weld tracker, arc length tracker, oscillator, monitor, flux conveying and recycling devices can be selected. It is suitable for pressure vessel, chemical machinery, refrigeration equipment, nuclear power construction, metallurgical construction, engineering machinery, petrochemical engineering and many other industries.

Options: 1, electric/manual mobile trolley 2, electric/manual cross fine-tuning 3, manned seat or platform 4, weld seam indication 5, monitoring system 6, flux delivery and recovery system

		small-scale	light				Medium-sized			Heavy			Super heavy
Specification type		LH1010	LH1515	LH2020	LH2030	LH2535	LH3030	LH3040	LH4050	LH5050	LH5060	LH6070	LH6060	LH7070	LH8080
Lifting stroke(mm)		1000	1500	2000	2000	2500	3000	3000	4000	5000	5000	6000	6000	7000	8000
Horizontal telescopic stroke(mm)		1000	1500	2000	3000	3500	3000	4000	5000	5000	6000	7000	6000	7000	8000
Lifting speed(mm/min)		435	1000				1000			1400			1400
Horizontal telescopic speed(mm/min)		Manual/electric adjustable	128-1280				110-1100			110-1100			150-1500
Minimum distance under crossarm along off-track surface(mm)		800	965（Mobile rotary type）		930（Fixed rotary type）		1100（Mobile rotary type） 1095（Fixed rotary type）			1350（Mobile rotary type） 1325（Fixed rotary type）			1350（Mobile rotary type） 1325（Fixed rotary type）
Maximum allowable load on front end of crossarm(kg)		50	100				150			300			500
Column rotation	angle(°)	±180°	±180°				±180°			±180°			±180°
	speed（rpm）	Manual	Manual				0.1/Manual			0.1/Manual			0.7
Trolley Speed(mm/min)		Manual	Manual/1500				1500			2500			2500
Interior gauge of trolley（mm）		——	1000/840				1750			1808			2500
Outline size	High * total	2400* 1800	3600* 3000	4100* 3500	4100* 4500	4600* 5000	5650* 4800	5650* 5800	6650* 6800	7900* 6800	7900* 7800	8900* 8800	9450* 8300	10450* 9300	11450* 10300
	Trolley size	1250/1050*190	14001480210 18801200265（Mobile rotary type） 12001200170（Fixed rotary type）				25002100330（Mobile rotary type） 18001500312（Fixed rotary type）			32002200375（Mobile rotary type） 20002000350（Fixed rotary type）			32002900375（Mobile rotary type） 25002500350（Fixed rotary type）
